CHOICE65 - NO FLEX CUTS PCB, FULL CNC CASE

Designed by Velocifire

Please check Purchase Disclaimer and Quality Disclaimer at the end of this page.

ADD ON - link

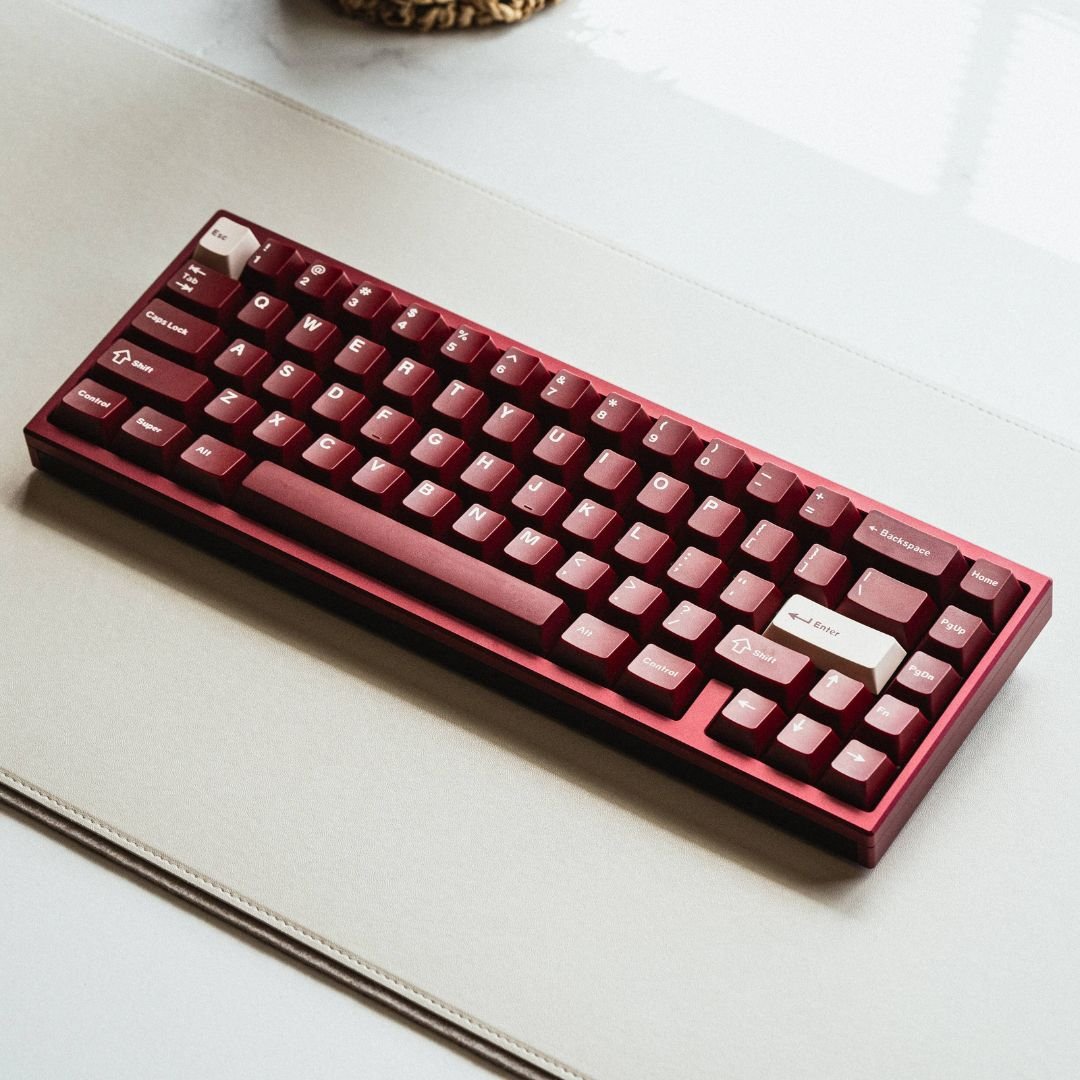

Appearance

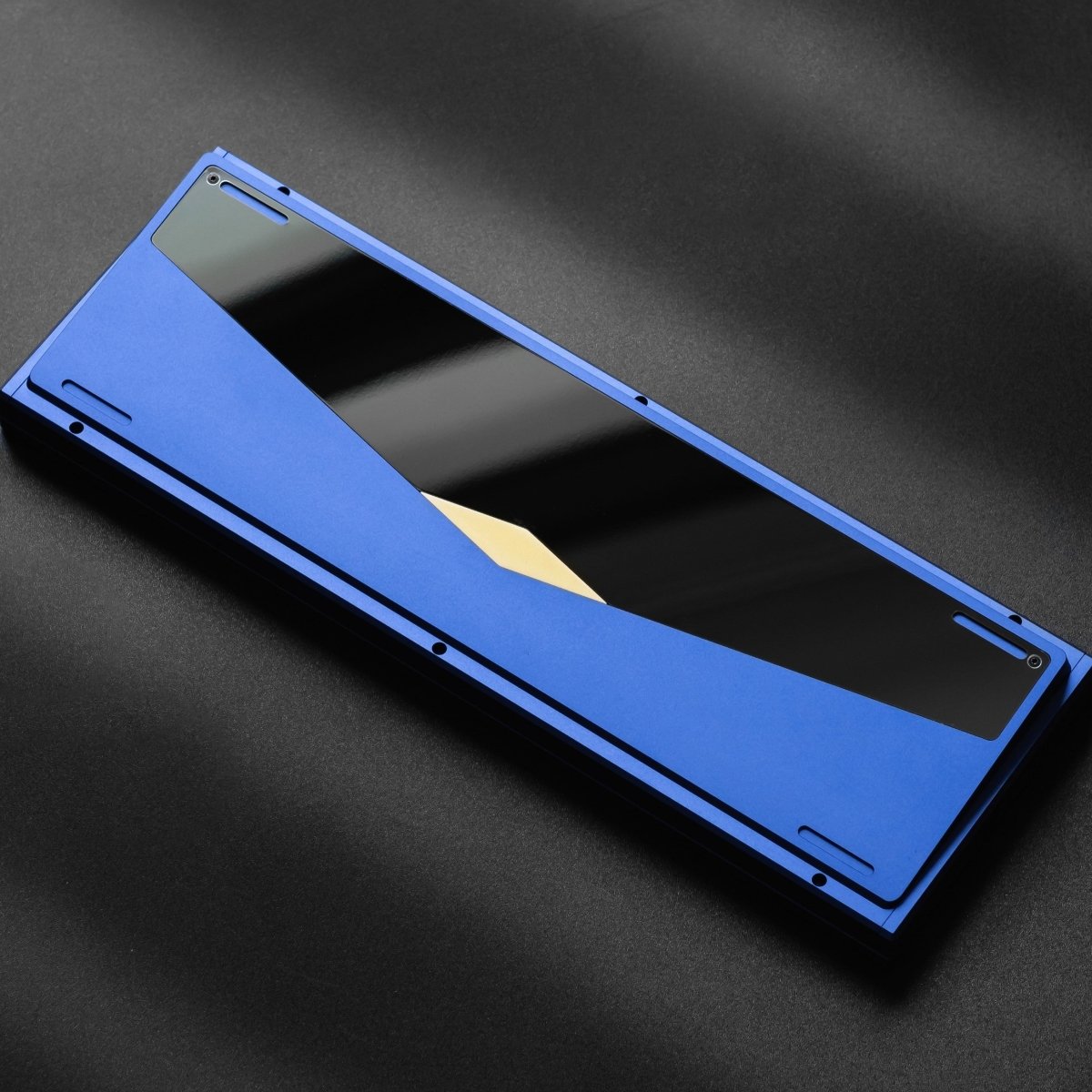

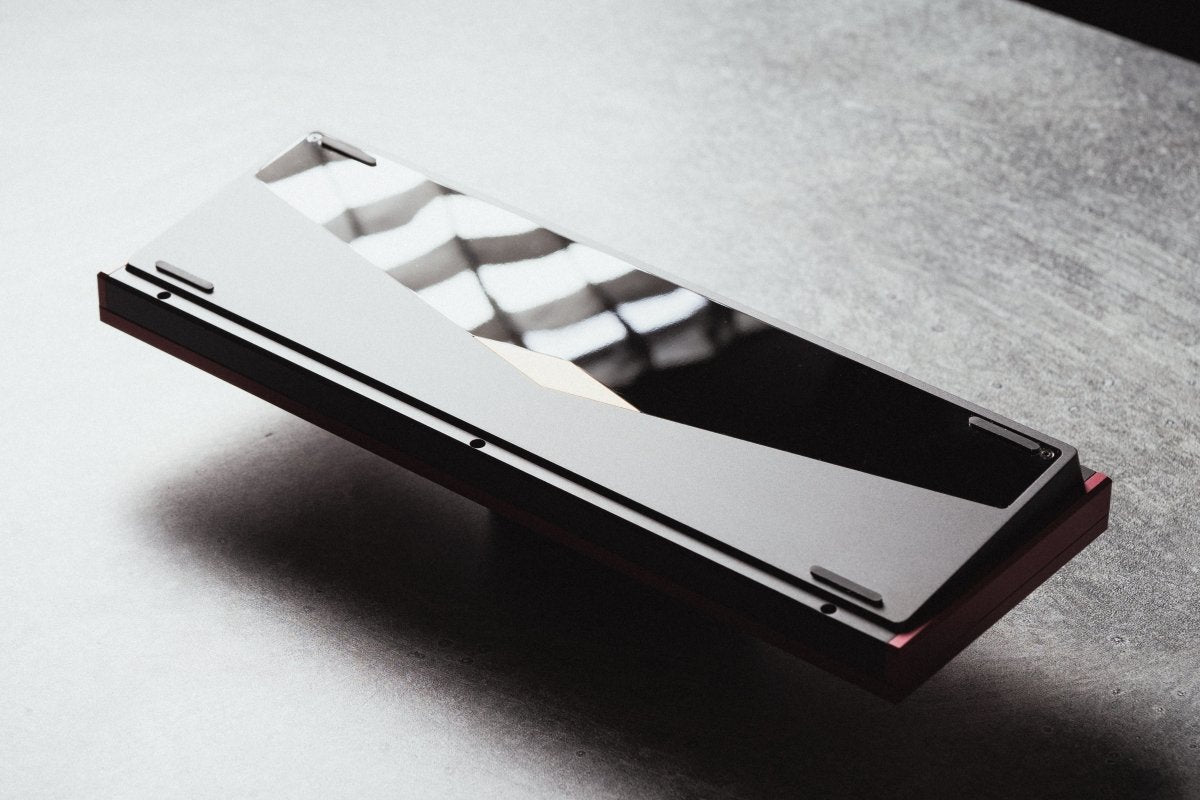

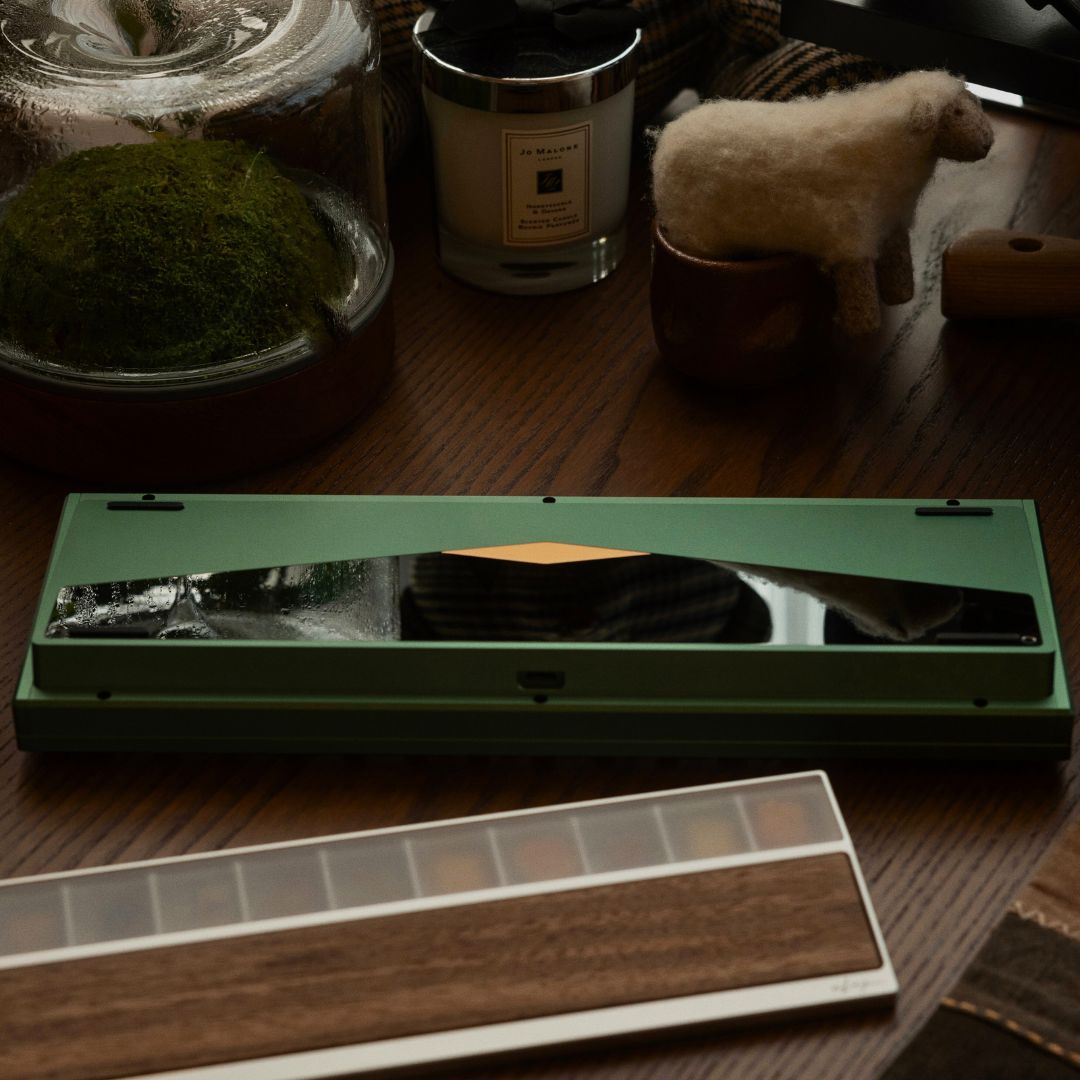

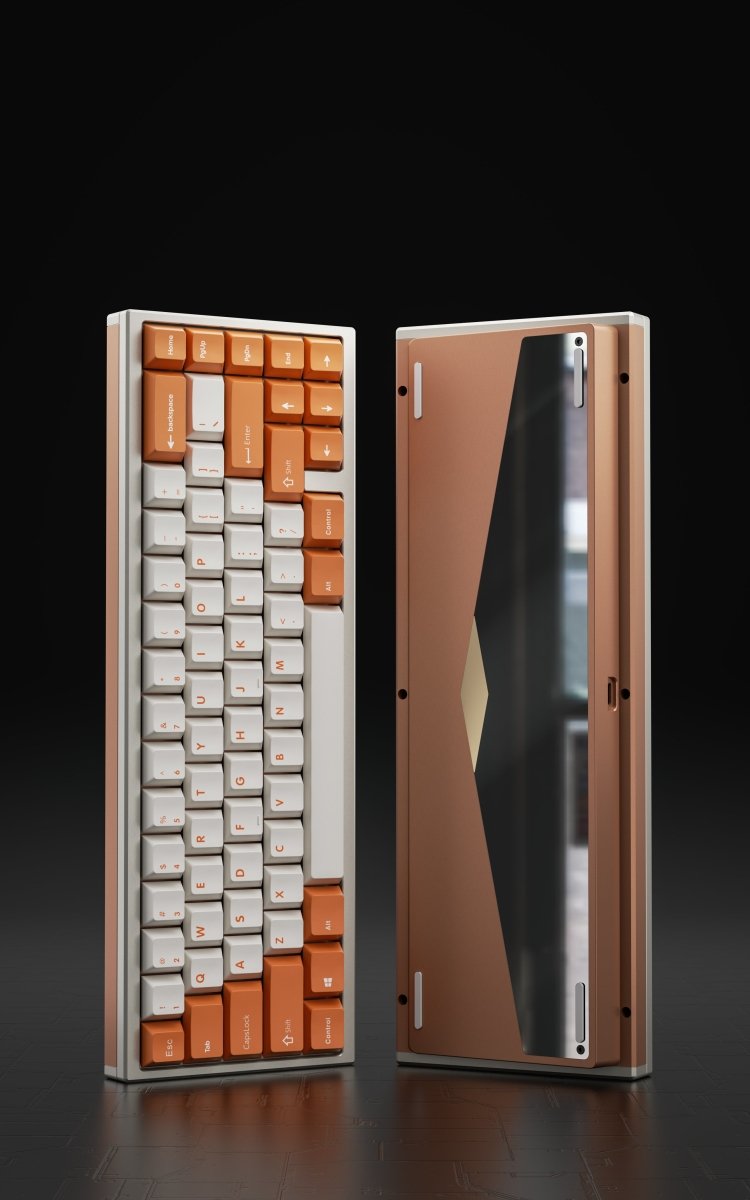

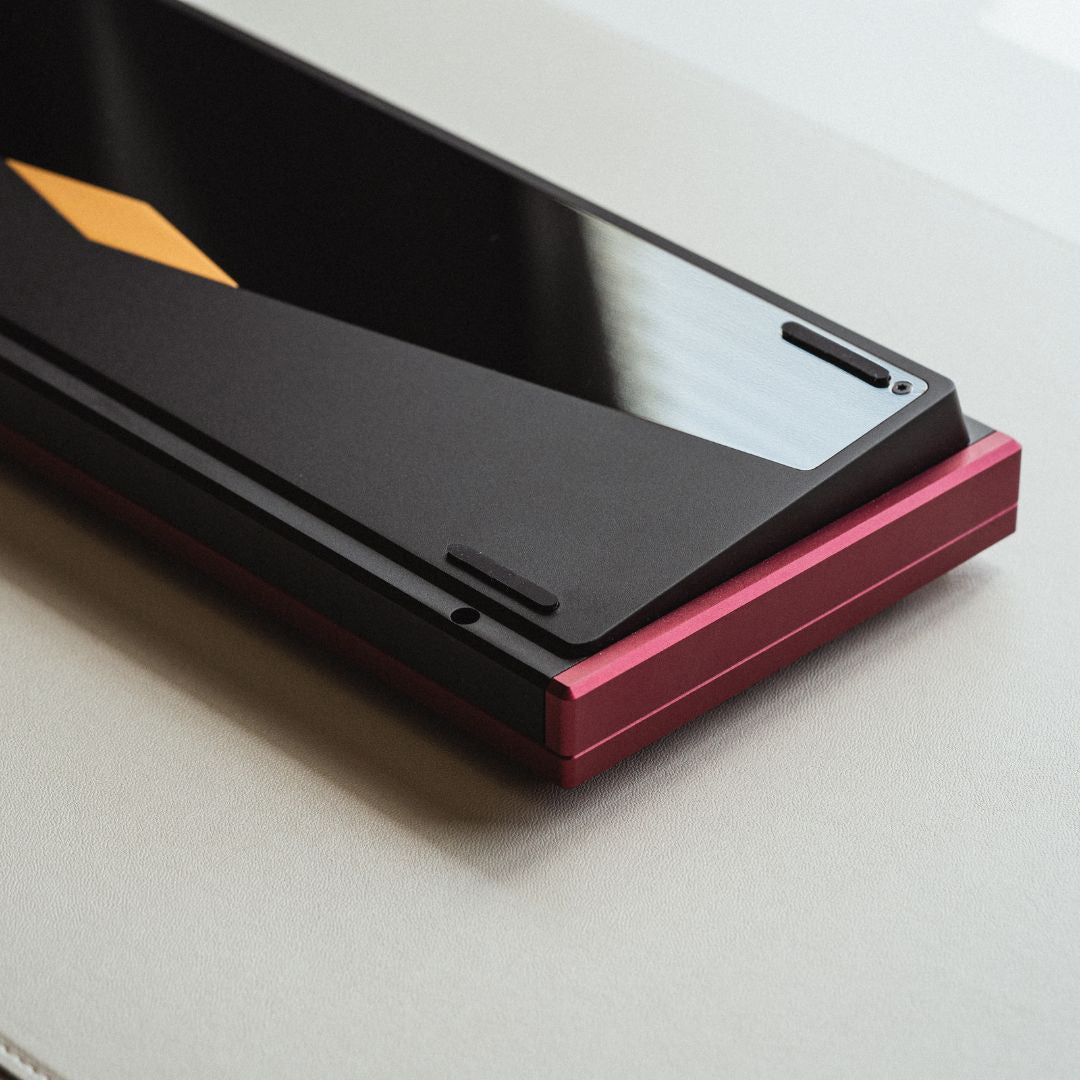

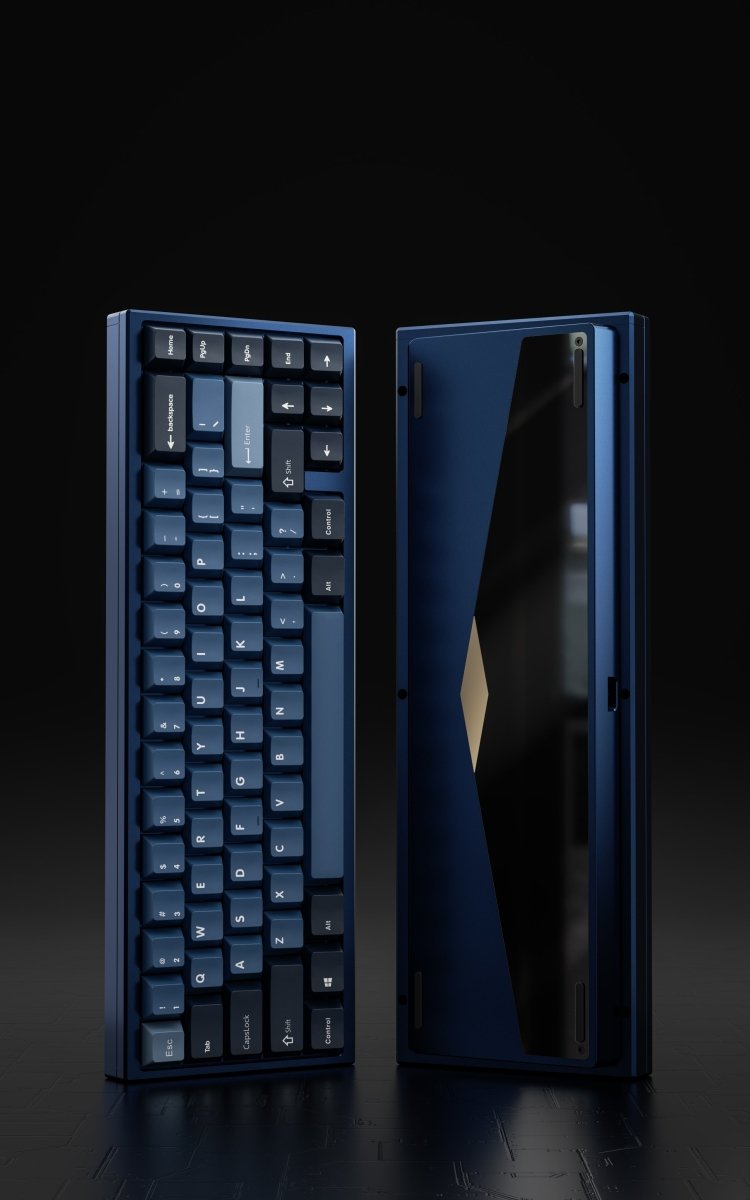

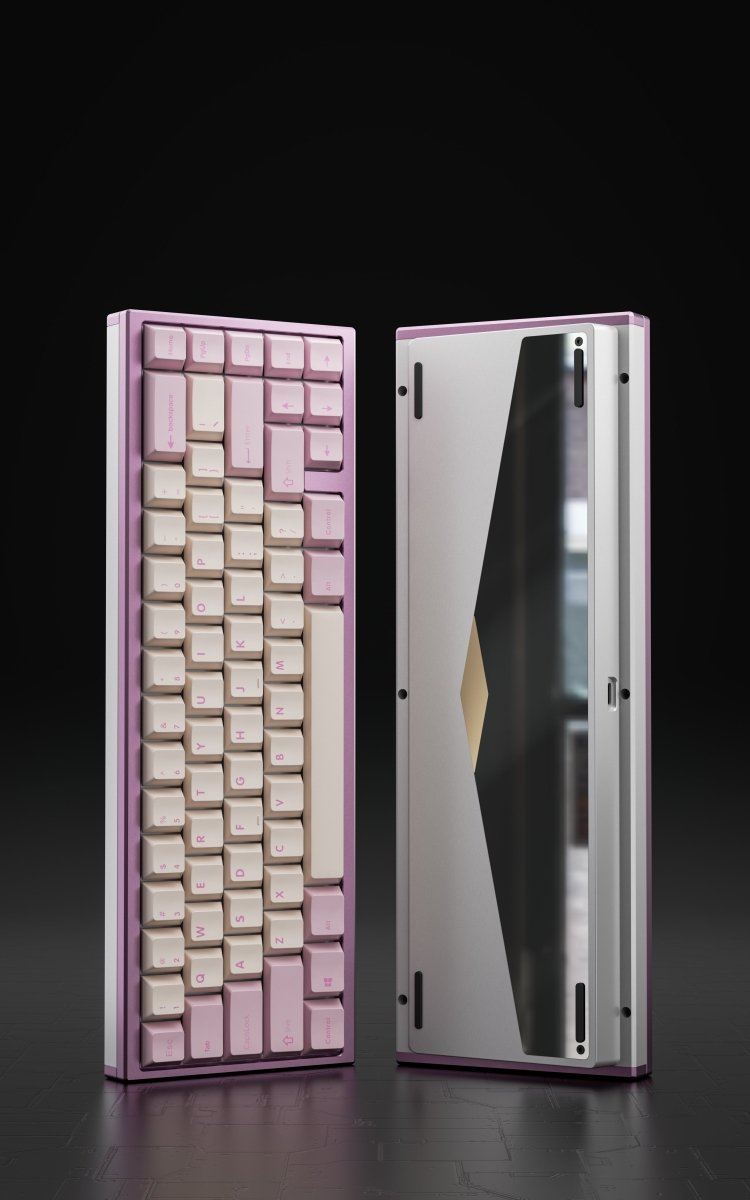

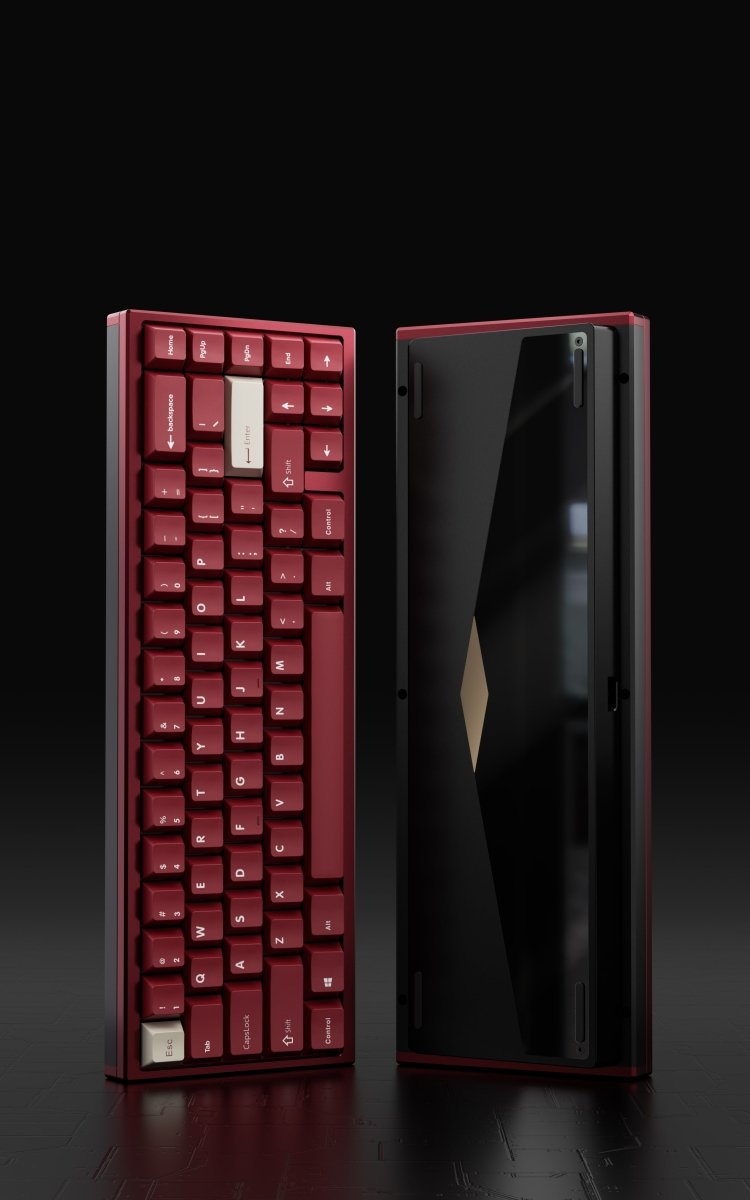

From the beginning, we wanted to create a simple and elegant keyboard with a good typing experience. By constantly adjusting the aspect ratio of the overall shape and the thickness of the frame, it was finally determined: The left and right frames are slightly thinner than the top and bottom frames, and the corners of the four sides are R2 fillet, making the turning point appear softer. The bottom weight consists of a large area of PVD stainless steel and a diamond-shaped transparent e-coat brass badge.

Consistent typing experience

We did not use the plate gasket mount. Instead, the poron pad between PCB and plate is used to replace the existing bottom case gaskets by extending and lengthening. Meanwhile, a 2mm plate poron pad is added on the plate to replace the top case gaskets. This mount does not have a rigid connection with the case like plate gasket mount, and because the force point is evenly distributed, it can obtain a very consistent typing experience. At the same time, this mount can greatly reduce the cumbersome process of assembly.

Comfortable feel of case

A low price for us doesn't mean we compromise on materials or workmanship. Relying on a strong supply chain, we still use 100% Full CNC 6063 aluminum, and adopt our last well-received DolphinS75 case coating process, which can definitely let you experience a silky smooth touch feel!

Specification

• Case material: 100% Full CNC 6063 aluminum
• Case coating process: Anodizing, Electrophoresis
• Mount: Gasket mount
• Typing angle: About 7°
• Front height: 19.8 mm
• Size: 314.15 * 110.1 mm
• Weight: About 1.2kg (excluding switches and keycaps), 1.4kg (including switches and keycaps)
• Support Plate: PC(default), Alu, FR4(all plates only support ANSI layout)
• Layout: 65%

PCB Features

• Black
• 1.2mm thickness
• Hotswap PCB (ANSI only)
• With daughterboard
• Support VIA
• Support stepped caps lock
• Support 6.25u, 7u spacebar

Choice65 Files

• .JSON

Contents:

• Top/bottom/left/right case*1
• Plate pad*1
• PC Plate*1
• Poron pad between switches and PCB (IXPE) pad*1
• Poron pad between PCB and plate*1
• Hotswap PCB*1
• Stainless steel PVD Weight*1
• Poron bottom pad *1
• Badge*1
• AOI03 Daughterboard*1
• Cable between PCB and daughterboard*1
• Anti-static sheet*1
• Foot pad*4
• hex screwdriver*1
• Phillips screw*6
• Cylindrical head hexagon socket screws*4
• Keyboard carrying bag*1

Keycaps, Switches & Stabilizers not included!

Explosion Diagram

Layout

Regional Vendors

Vendor GB time: July 12th - August 10th, 2023

• AU: CLS TECH
• CA: Deskhero
• EU: KEYGEM
• UK: Mechboards
• KR: Monstargear
• JP: Yushakobo
• VN: The Keebs Store
• SG: KTECHS
• MY: Rebultkeyboard
• TH: NTCH Keys
• PH: Zionstudios
• ID: Kukey studio
• US and the rest of the world: Velocifire

PRE-ORDER AND GROUP-BUY RULES

• Choice65 keyboard is a GB item. Estimated shipping time is early Q4 2023. Delays and setbacks may occur. You agree to these terms by default when purchasing.

• You can add and purchase in-stock items with this group buy order, but they will all be shipped together once available.

• There will be a 5% + 0.3 Paypal process fee on order cancellations and refunds after placing an order.

• No refunds or cancellations after the GB ends.

• Do not purchase this keyboard if you do not agree to the rules Thank You!

Quality Disclaimer

• Appearance QC standards (including Stainless steel PVD weight) are as follows:


  According to GB QC standard, our QC is in the light conditions are normal, and keep the distance between 20-25 cm to check the keyboard‘s appearance. If there is no defect then the QC check is passed.

  If the keyboard has problems such as dirt/spot/trachoma, as long as the dirt/spot/trachoma is less than 0.8-2.0 mm² (check with a film caliper), the QC check will pass. You can view the table of QC standards for dirt/spot/trachoma.

• Plating marks caused by hanging holes inside during keyboard production are normal phenomena during production.

• Due to the special material properties of PVD, there may be slight, unavoidable dust on the mirror surface during production. These are normal phenomena and within our quality approval range.

• The final product color may be different from the rendering, but it is an acceptable range. It mainly refers to the actual product.
